Household Electric Motor Water Pump 1HP With Cast Iron Body, 0.75KW Output Power
PRODUCT DESCRIPTION
IDB series pump is a Vortex pump with a compact structure, mini size, stable operating curves. High head.
Electric Motor Water Pump FEATURES
1. high head, small flow rate, high efficiency, suction to 9m.
2. stable operate curve
3.durable use,for 2500hrs maintenance.
4. easy installation.
5. mini size, easy taking.
6. antirust pump body and support.
7. head: 3~65m. (as a curve)
APPLICATIONS
Vortex water pump with peripheral impeller can offer high pressure to comparatively low powers and have remarkably steady operating curves. And suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
They are highly reliable, light, economical, and easy to use. As a result, they are widely used in domestic applications, particularly the automatic distribution of water from surge tanks, watering gardens, and boosting insufficient mains water pressure.
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK, S.K.F., or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |

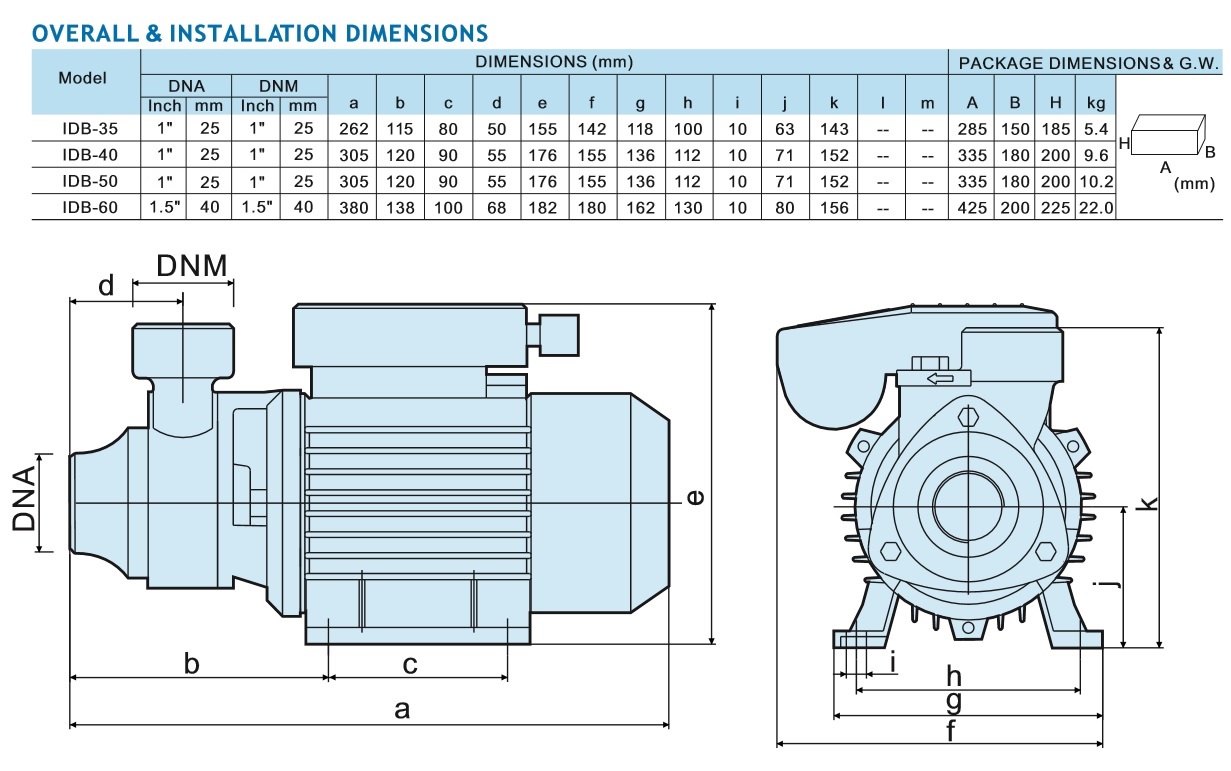

TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) |
| IDB-35 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 285x150x185 | 5.4 |
| IDB-40 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.6 |
| IDB-50 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 335x180x200 | 10.2 |
| IDB-60 | 1.5 / 1.1 | 6.2 | 2850 | 60 | 70 | 9 | 1½ "x1½" | 425x200x225 | 22 |
Electric Motor Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
F.A.Q.:
1. Q: How about the M.O.Q.?
A: Usually, it is 100 PCS for each model.
2. Q: Are you a factory or a trading company?
A: We have made water pumps, motors, alternators, and diesel generators since 2006
3. Q: Can you do O.E.M.?
A: Yes, we can. Any O.E.M.s are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
