1.5kw Three Phase Asynchronous Motor Squirrel Cage 1400 Rpm For Cutting Machine
IE2 High-Efficiency Motor
IE2 Motor Description
IE2 asynchronous NSK bearing electric motor IE2 series three-phase asynchronous motor is the enclosed, fan-cooled. The product applies to economic lake-off fields, such as machine tools, water pumps, fans, cutting machines, which also can be used for transportation, stirring, printing.
Model: IE2 MS90L-4
Output:1.5KW/2HP
Voltage:230/400V
Application

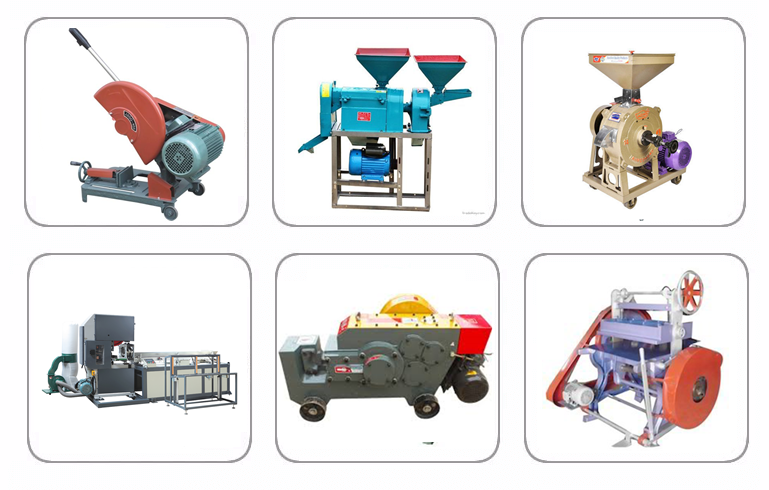

The product is suitable for economic lake farms, such as machine tools, pumps, fans, compressors, etc. It can also be used in cutting machines, rice machinery, food, and other types without flammable, explosive, corrosive gases.
Operating conditions
Ambient temperature: -15°C~40°C
Altitude: Altitude should be higher than 1000 meters above sea level.
Rated voltage: 380V,400V,415V,440V. Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw or less whereas and delta-connection.
Duty/Rating: Continuous (S1)
Insulation class: F, the temperature rise of the stator winding is examined at 80K
(by resistance method).
Protection class: IP55.
Cooling method: IC411.
Production Line
IE2 Motor Technical Data
| Model | Power | (V) | (A) | (r/min) | Eff. (%) | P.F. | Ist/In | Tmax/Tn |
| Kw | HP | 50% | 75% | 100% |
| IE2 MS801-2 | 0.75 | 1 | 230/400 | 3.0/1.73 | 2800 | 76.5 | 77.3 | 77.4 | 0.813 | 2.2 | 2.3 |
| IE2 MS802-2 | 1.1 | 1.5 | 4.2/2.43 | 2800 | 79 | 80 | 79.6 | 0.825 | 2.2 | 2.3 |
| IE2 MS90S-2 | 1.5 | 2 | 5.53/3.19 | 2820 | 80.2 | 81.5 | 81.3 | 0.837 | 2.2 | 2.3 |
| IE2 MS90L-2 | 2.2 | 3 | 7.93/4.58 | 2820 | 82.2 | 83.5 | 83.2 | 0.837 | 2.2 | 2.3 |
| IE2 MS100L-2 | 3 | 4 | 10.5/6.06 | 2830 | 84 | 85.1 | 84.6 | 0.848 | 2.2 | 2.3 |
| IE2 MS112M-2 | 4 | 5.5 | 400/690 | 7.97/4.6 | 2850 | 85.4 | 86.8 | 85.8 | 0.848 | 2.2 | 2.3 |
| IE2 MS132S1-2 | 5.5 | 7.5 | 10.65/6.15 | 2870 | 86.7 | 87.3 | 87 | 0.86 | 2 | 2.3 |
| IE2 MS132S2-2 | 7.5 | 10 | 14.35/8.28 | 2870 | 87.6 | 88.3 | 88.1 | 0.86 | 2 | 2.3 |
| IE2 MS160M1-2 | 11 | 15 | 20.74/11.97 | 2900 | 89 | 89.8 | 89.4 | 0.86 | 2 | 2.3 |
| IE2 MS160M2-2 | 15 | 20 | 27.99/16.16 | 2900 | 90 | 90.5 | 90.3 | 0.86 | 2 | 2.3 |
| IE2 MS160L-2 | 18.5 | 25 | 33.83/19.53 | 2900 | 90.3 | 91 | 90.9 | 0.872 | 2 | 2.2 |
| IE2 MS802-4 | 0.75 | 1 | 230/400 | 3.28/1.9 | 1380 | 77.3 | 79.8 | 79.6 | 0.72 | 2.3 | 2.3 |
| IE2 MS90S-4 | 1.1 | 1.5 | 4.57/2.64 | 1400 | 79.9 | 81.7 | 81.4 | 0.743 | 2.3 | 2.3 |
| IE2 MS90L-4 | 1.5 | 2 | 6.02/3.48 | 1400 | 82.1 | 83.5 | 82.8 | 0.755 | 2.3 | 2.3 |
| IE2 MS100L1-4 | 2.2 | 3 | 8.42/4.86 | 1420 | 82.6 | 84.5 | 84.3 | 0.778 | 2.2 | 2.3 |
| IE2 MS100L2-4 | 3 | 4 | 11.32/6.54 | 1420 | 84.2 | 85.7 | 85.5 | 0.778 | 2.2 | 2.3 |
| IE2 MS112M-4 | 4 | 5.5 | 400/690 | 8.47/4.89 | 1430 | 85.8 | 87 | 86.6 | 0.79 | 2.2 | 2.3 |
| IE2 MS132S-4 | 5.5 | 7.5 | 11.18/6.45 | 1450 | 87.4 | 88.3 | 87.7 | 0.813 | 2.2 | 2.3 |
| IE2 MS132M-4 | 7.5 | 10 | 14.85/8.58 | 1450 | 88.2 | 89 | 88.7 | 0.825 | 2.2 | 2.3 |
| IE2 MS160M-4 | 11 | 15 | 21.84/12.61 | 1460 | 89.1 | 90 | 89.8 | 0.813 | 2.2 | 2.3 |
| IE2 MS160L-4 | 15 | 20 | 29.08/16.79 | 1460 | 90.2 | 91.1 | 90.6 | 0.825 | 2.2 | 2.3 |
| IE2 MS90S-6 | 0.75 | 1 | 230/400 | 3.82/2.2 | 910 | 73.4 | 76.3 | 75.9 | 0.65 | 2 | 2.2 |
| IE2 MS90L-6 | 1.1 | 1.5 | 5.25/3.03 | 910 | 77 | 78.8 | 78.1 | 0.673 | 2 | 2.2 |
| IE2 MS100L-6 | 1.5 | 2 | 6.77/3.91 | 940 | 79.6 | 80.8 | 79.8 | 0.697 | 2 | 2.2 |
| IE2 MS112M-6 | 2.2 | 3 | 9.69/5.59 | 940 | 80.4 | 81.6 | 81.8 | 0.697 | 2 | 2.2 |
| IE2 MS132S-6 | 3 | 4 | 12.56/7.25 | 960 | 81 | 83.4 | 83.3 | 0.72 | 2 | 2.2 |
| IE2 MS132M1-6 | 4 | 5.5 | 400/690 | 9.36/5.4 | 960 | 82.7 | 84.5 | 84.6 | 0.732 | 2 | 2.2 |
| IE2 MS132M2-6 | 5.5 | 7.5 | 12.47/7.2 | 960 | 84.8 | 86.2 | 86 | 0.743 | 2 | 2.2 |
| IE2 MS160M-6 | 7.5 | 10 | 16.78/9.69 | 970 | 86.4 | 87.5 | 87.2 | 0.743 | 2 | 2 |
| IE2 MS160L-6 | 11 | 15 | 24.19/13.97 | 970 | 88.2 | 89.2 | 88.7 | 0.743 | 2 | 2 |
Performance comparison chart:
| ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM |
| Power(kw) | eff2 (nominal) | eff1 (nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 79.6 | 82.5 |
| 1.1 | 76.2 | 83.8 | 81.4 | 84.1 |
| 1.5 | 78.5 | 85.0 | 82.8 | 85.3 |
| 2.2 | 81 | 86.4 | 84.3 | 86.7 |
| 3.0 | 82.6 | 87.4 | 85.5 | 87.7 |
| 4.0 | 84.2 | 88.3 | 86.6 | 88.6 |
| 5.5 | 85.7 | 89.2 | 87.7 | 89.6 |
| 7.5 | 87 | 90.1 | 88.7 | 90.4 |
| 11 | 88.4 | 91.0 | 89.8 | 91.4 |
| 15 | 89.4 | 91.8 | 90.6 | 92.1 |
| 18.5 | 90 | 92.2 | 91.2 | 92.6 |
| 22 | 90.5 | 82.6 | 91.6 | 93.0 |
| 30 | 91.4 | 93.2 | 92.3 | 93.8 |
| 37 | 92 | 93.6 | 92.7 | 93.9 |
| 45 | 92.5 | 93.9 | 93.1 | 94.2 |
| 55 | 93 | 94.2 | 93.5 | 94.6 |
| 75 | 93.6 | 94.7 | 94.0 | 95.0 |
| 90 | 93.9 | 95.0 | 94.2 | 95.2 |
| 110 | | | 94.5 | 95.4 |
| 132 | | | 94.7 | 95.6 |
| 160 | | | 94.9 | 95.8 |
| 200...375 | | | 95.1 | 96.0 |
